Digital Droplet PCR
What is Digital Droplet PCR
Digital droplet PCR (ddPCR) is transforming molecular biology. By partitioning a sample into thousands of tiny water‑in‑oil droplets, each droplet becomes its own PCR reaction.
This setup enables absolute quantification of target nucleic acids with unmatched precision.
For researchers and clinicians, ddPCR delivers the reliability needed to drive both scientific discovery and clinical diagnostics forward.

Typical Digital Droplet PCR Workflow
In life sciences, ddPCR is often chosen over qPCR (quantitative real‑time PCR) when absolute quantification, rare‑event sensitivity, and high precision are critical. The microfluidic ddPCR workflow typically unfolds in four steps:
1. Sample Partitioning
Partitioning is achieved by using microfluidic droplet generators. The PCR mix — containing DNA or RNA, primers, probes, and enzymes — is separated into thousands of tiny microreactions. Each droplet may hold zero, one, or a few target molecules, creating a highly precise setup for amplification.
2. PCR Amplification
Once partitioned, each droplet undergoes PCR independently. This may happen in tubes or wells in which the droplets are loaded from the droplet generator – or on the microfluidic chip itself.
3. Detection and Droplet Reading
After amplification, droplets are scanned for fluorescence. A specialized droplet reader then examines every droplet to determine whether the target sequence is present, using fluorescence as the signal. Positive droplets glow to indicate the presence of the target sequence, while negative droplets remain dark. This binary readout makes digital droplet PCR highly accurate.
4. Data Analysis
Each droplet can contain one or several target molecules, therefore the absolute number of target molecules is calculated using the Poisson distribution. This calculation provides the absolute quantification of nucleic acids, eliminating the need for standard curves and ensuring unmatched precision in genetic analysis.
Key Advantages of Digital Droplet PCR:
- Absolute quantification
- High sensitivity and precision
- Robustness
- Multiplexing
Applications
Digital Droplet PCR has numerous critical applications including:
- Cancer research and therapy: Monitoring in blood cancer patients
- Cell and gene therapy: Tests for contaminants.
- Gene expression analysis: Measures changes in gene expression levels.
- Copy number variation: Determines the number of copies of a specific gene.
- Viral and pathogen detection: Quantifies viral loads and detects pathogens.
- Environmental Testing: Tests for pathogens in wastewater (e.g. SARS-CoV-2 , mPOX virus)
- Food Testing: Detects allergens or pathogens in food ( e.g.pathogenic E. coli)
thinXXS PCR Droplet Capabilities—Meeting Critical Requirements
High‑throughput, reproducible droplet formation is essential for ddPCR. Systems must generate highly monodisperse droplets, achieved through microfluidic droplet generators. Droplets can be formed actively or passively. Active systems harness external forces—such as electrical, magnetic, thermal, or mechanical—to generate droplets.
Passive microfluidic droplet generators - in which fluid flow is driven by external pumps - are widely used due to their simplicity, affordability, and biocompatibility. When producing droplets in microfluidic droplet generators, an aqueous phase is dispersed in a continuous phase (usually an oil).

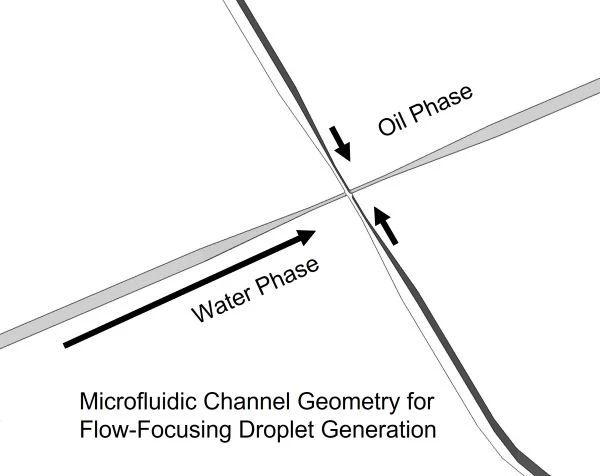

The most common design variants are co-flow, T-junction, flow-focusing, and step emulsification.
All these designs share the characteristic that manufacturing these microchannels imposes special requirements.
ThinXXS brings together decades of expertise, cutting-edge cleanroom facilities, and unmatched precision in microfluidics to meet the most demanding requirements. From single-digit microm eter channels with reproducibility down to ±1 µm, to medical-grade materials and exceptional optical properties, our capabilities align seamlessly with the critical requirements of Digital PCR droplet technology:

Accuracy and precision of channel geometry
thinXXS offers:
- Microfluidic channels down to the single-digit micrometer range possible
- Exceptional reproducibility for critical functional elements down to +/- 1µm
- Core capability: Manage tolerances along the complete manufacturing process chain
Cleanliness
thinXXS offers:
- State of the Art cleanrooms
- Assembly in ISO7 cleanroom
Materials compatible with ddPCR chemistry and processes
thinXXS offers:
- Decades of experience in processing a wide range of plastic materials (e.g. COC, COP, PMMA, PC, PP ...)
- Medical-grade materials
- Manufacturing of parts with exceptional optical properties
Quality Control
thinXXS offers:
- High-resolution measurement methods and the most advanced measurement equipment
